Grasp Contact Mechanics Benchmark#

Tip

For models and code, see the MotrixSim Docs repository.

Before running the examples, please refer to 🛠️ Environment Setup to complete the environment setup.

In robot simulation, “grasping” seems simple — the gripper closes, the object is held, the arm lifts. But for policy training and sim-to-real transfer, merely holding the object is far from enough. Whether the contact forces are smooth and physically consistent directly affects whether trained policies can transfer to real robots.

This page presents two quantitative experiments that evaluate MotrixSim and MuJoCo’s contact mechanics during grasping tasks:

  • Experiment 1 (Contact Force Analysis): Records contact force data step-by-step throughout a complete grasp-lift-hold sequence, comparing force balance and force smoothness across engines.

  • Experiment 2 (Critical Friction Slip Test): Validates whether each engine’s friction model obeys Coulomb’s friction law — when the friction coefficient reaches the theoretical critical value, the object should be just barely held.

Experiment Setup#

Both experiments share the same scene: a Franka Emika Panda robotic arm with a parallel-jaw gripper, grasping a cube placed on a table.

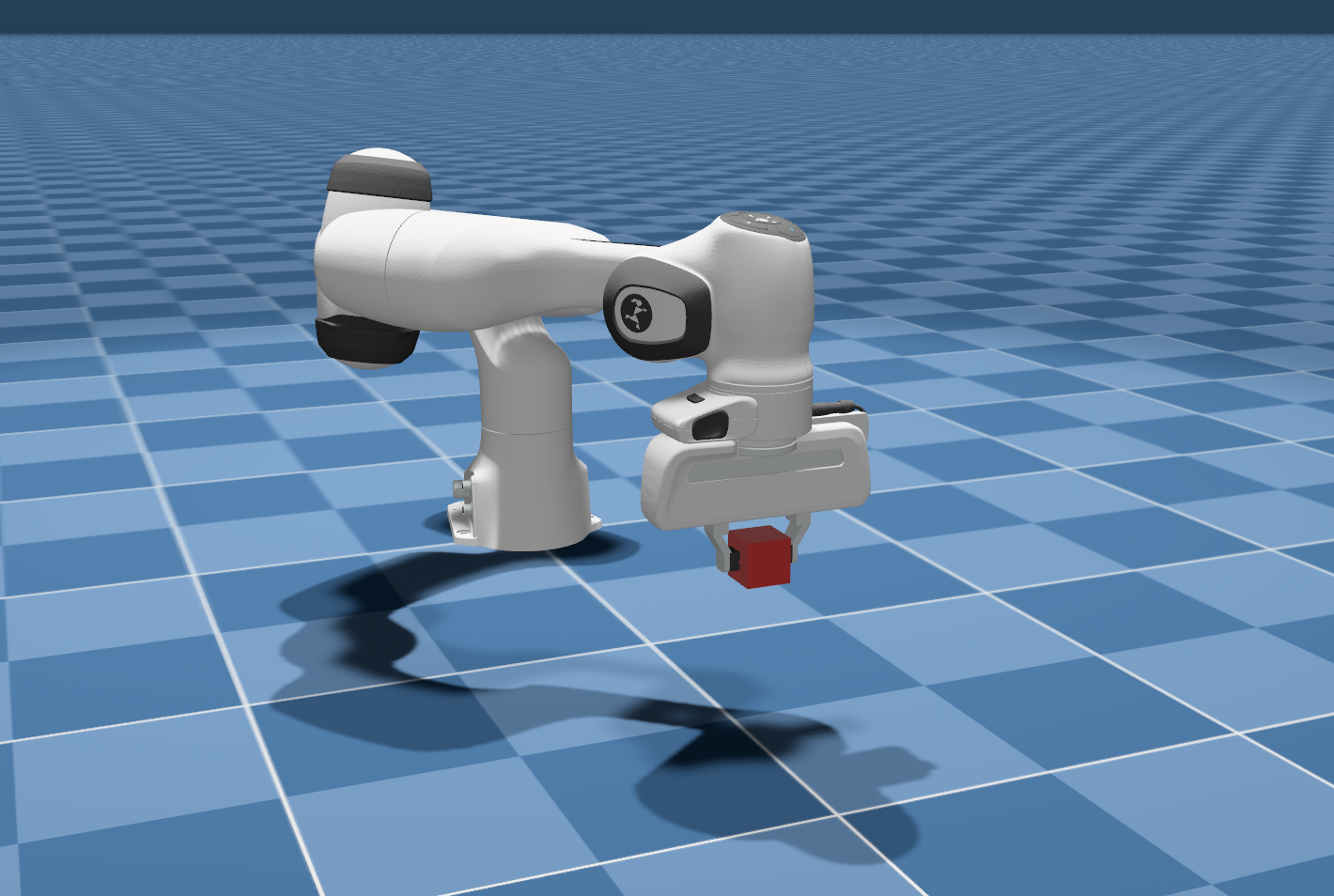

franka_grasp

The grasp sequence is divided into the following phases:

Phase

Action

Duration

move_to_lift

Arm moves from initial pose to lift-ready position

1.0s

move_to_grasp

Arm moves from lift position to grasp position

1.0s

close_gripper

Gripper closes, establishing contact with the object

1.0s

lift

Arm returns to lift pose, lifting the object

1.0s

settling

Transition and stabilization after lifting

0.4s

hold

Steady-state holding

Configurable

All engines use identical scene files, control trajectories, timesteps, and sensor configurations, ensuring that observed differences come solely from the engine’s contact solving and friction modeling.

Experiment 1: Contact Force Analysis#

Script: force_analy.py

Goal#

Run MotrixSim, MuJoCo (Euler), and MuJoCo (FastImplicit) under identical conditions and compare two dimensions:

  1. Force balance: Does the vertical friction force accurately match the object’s weight?

  2. Force smoothness: Does the contact force change gradually between timesteps?

Physics Background#

When a gripper horizontally clamps an object and lifts it, the normal forces (horizontal clamping forces) from the left and right fingers cancel each other out. What actually supports the object is the vertical friction force — it must equal the object’s weight \(mg\) for the object to remain stationary.

An ideal physics engine should output during the hold (steady-state) phase:

\[ F_z \approx mg \]

where \(F_z\) is the total vertical friction force, \(m\) is the object mass, and \(g\) is gravitational acceleration.

Results#

Running the script generates analysis plots in examples/bench/grasp/.result/.

Force Balance#

force_balance

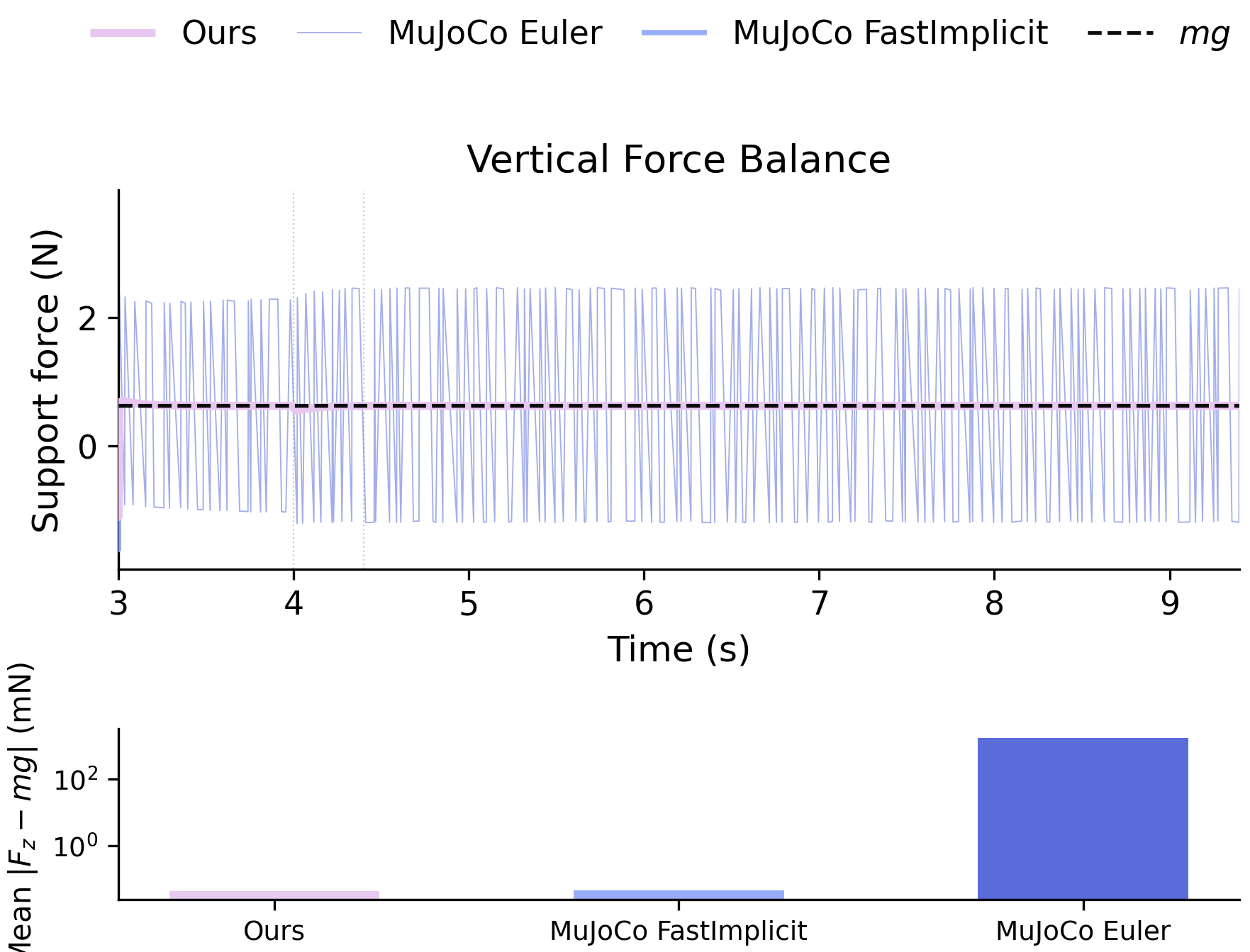

The top panel shows vertical friction force \(F_z\) over time during the lift, settling, and hold phases. The black dashed line marks the theoretical gravity value \(mg\). The bottom panel uses a bar chart to compare the mean force error \(|F_z - mg|\) across engines during the hold phase.

Conclusion: MotrixSim’s vertical friction force closely tracks the \(mg\) line with minimal error. MuJoCo exhibits noticeable periodic oscillations, with the Euler integrator showing larger fluctuations.

Force Smoothness#

force_smoothness

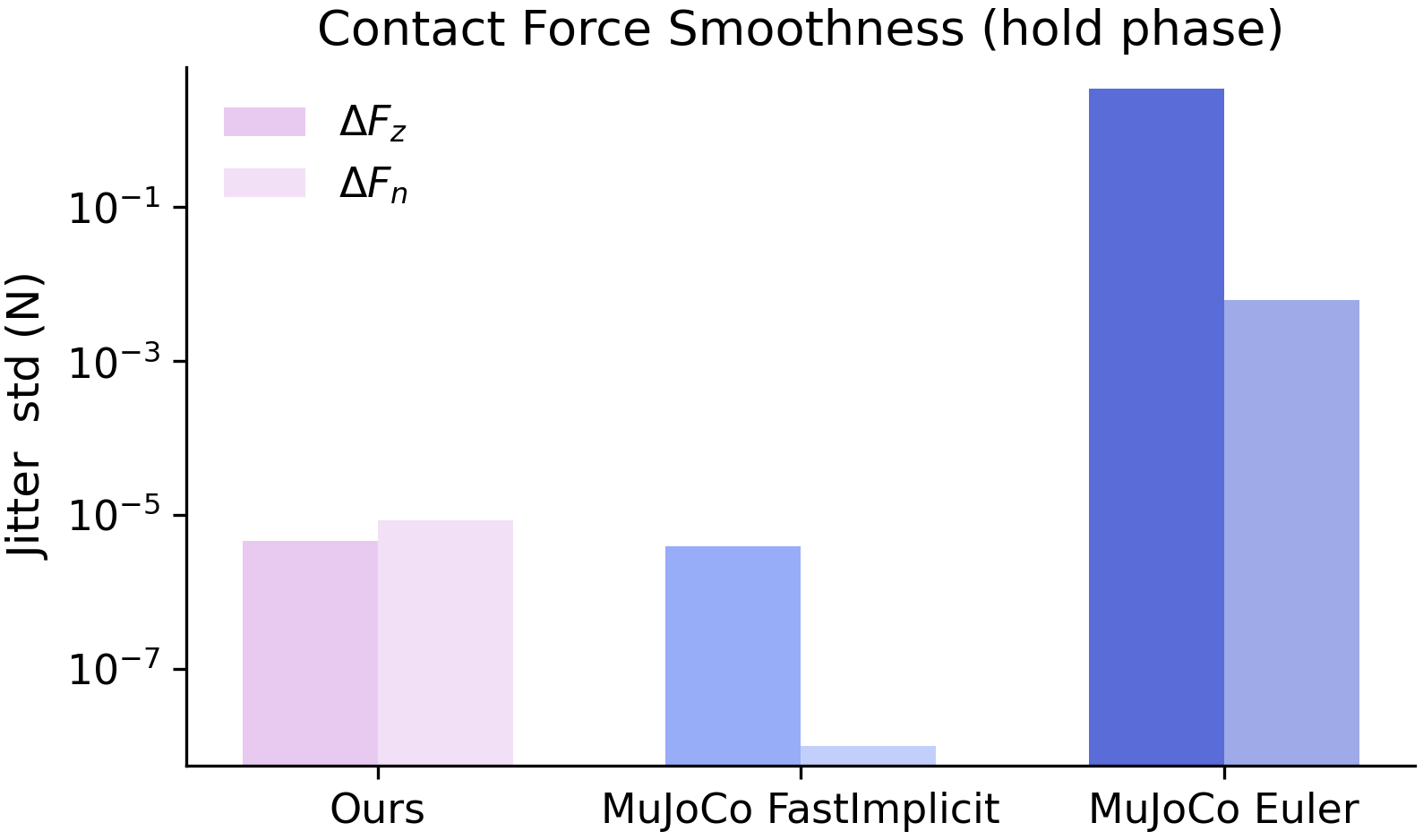

Force smoothness measures the magnitude of contact force changes between adjacent timesteps. Specifically, the step-to-step difference of the vertical friction force is computed as \(\Delta F_z(k) = F_z(t_{k+1}) - F_z(t_k)\), and the standard deviation of all differences during the hold phase is used as the Jitter metric — lower Jitter means smoother forces. The plot shows Jitter for both vertical friction force (\(\Delta F_z\)) and normal clamping force (\(\Delta F_n\)).

Conclusion: MuJoCo Euler’s Jitter is several orders of magnitude higher than MotrixSim and MuJoCo FastImplicit, indicating significant high-frequency numerical oscillations in its contact forces. Both MotrixSim and MuJoCo FastImplicit have Jitter at an extremely small scale (near numerical precision limits), with virtually no observable step-to-step force fluctuation during the hold phase — their contact response is very smooth.

How to Run#

uv run examples/bench/grasp/force_analy.py

After execution, plots are saved to examples/bench/grasp/.result/.

Experiment 2: Critical Friction Slip Test#

Script: friction_threshold.py

Goal#

Validate whether each engine’s friction model correctly obeys Coulomb’s friction law — specifically, whether the hold/slip behavior around the theoretical critical friction coefficient matches physical predictions.

Physics Principle#

friction_principle

Imagine holding a block horizontally between two fingers and lifting it. The fingers provide a normal force (clamping force) \(N\), and the friction coefficient is \(\mu\). According to Coulomb’s friction law, the maximum static friction force is:

\[ f_{\max} = \mu \times N \]

To support the block, friction must be greater than or equal to its weight:

\[ \mu \times N \geq mg \]

This gives the critical friction coefficient:

\[ \mu_{\text{crit}} = \frac{mg}{N} \]

  • When \(\mu < \mu_{\text{crit}}\): friction is insufficient, and the object should slip

  • When \(\mu \geq \mu_{\text{crit}}\): friction is sufficient, and the object should remain held

A physically correct simulator should show a clear hold/slip boundary at \(\mu_{\text{crit}}\).

Method#

  1. Warm-up phase: Complete a normal grasp and lift to reach a stable hold state; record the gripper normal force \(N\)

  2. Compute critical value: Calculate \(\mu_{\text{crit}} = mg / N\) from the object mass and normal force

  3. Parameter sweep: Test 5 multipliers around \(\mu_{\text{crit}}\) (0.90, 0.98, 1.00, 1.02, 1.10), modifying the friction coefficient for each

  4. Observe results: Simulate 5 seconds from the hold state and observe whether the object slips

Results#

The following table shows results for all three engines at different friction coefficient multipliers:

Engine

Factor

Actual \(\mu\)

Predicted

Actual

Drop (mm)

Matches Theory

MotrixSim

0.90

0.0812

Slip

Slipped

154.2

✅

MotrixSim

0.98

0.0884

Slip

Slipped

150.0

✅

MotrixSim

1.00

0.0902

Hold

Held

0.0

✅

MotrixSim

1.02

0.0920

Hold

Held

0.0

✅

MotrixSim

1.10

0.0992

Hold

Held

0.0

✅

MuJoCo Euler

0.90

0.0812

Slip

Slipped

153.5

✅

MuJoCo Euler

0.98

0.0884

Slip

Slipped

153.2

✅

MuJoCo Euler

1.00

0.0902

Hold

Slipped

151.2

❌

MuJoCo Euler

1.02

0.0920

Hold

Slipped

152.0

❌

MuJoCo Euler

1.10

0.0992

Hold

Slipped

150.5

❌

MuJoCo FastImplicit

0.90

0.0812

Slip

Slipped

152.5

✅

MuJoCo FastImplicit

0.98

0.0884

Slip

Slipped

150.9

✅

MuJoCo FastImplicit

1.00

0.0902

Hold

Slipped

151.7

❌

MuJoCo FastImplicit

1.02

0.0920

Hold

Slipped

149.7

❌

MuJoCo FastImplicit

1.10

0.0992

Hold

Slipped

11.3

❌

Note

The normal force \(N\) and object weight \(mg\) are nearly identical across engines (\(N \approx 6.96\) N, \(mg \approx 0.628\) N), so \(\mu_{\text{crit}} \approx 0.0902\) is the same for all three.

Analysis#

MotrixSim matches physical predictions exactly:

  • \(\mu < \mu_{\text{crit}}\) (factors 0.90, 0.98): object slips

  • \(\mu = \mu_{\text{crit}}\) (factor 1.00): object is just barely held

  • \(\mu > \mu_{\text{crit}}\) (factors 1.02, 1.10): object is stably held

The boundary falls precisely at the theoretical critical value \(\mu_{\text{crit}}\), demonstrating that MotrixSim’s friction model strictly obeys Coulomb’s friction law.

MuJoCo Euler deviates from physical predictions: even at 1.10x the critical friction coefficient, the object still slips. This indicates a systematic deficiency in MuJoCo’s Euler integrator for maintaining friction constraints in this scenario.

MuJoCo FastImplicit shows some improvement but remains imprecise: at the highest multiplier (1.10), the object does not fully drop but still slips noticeably (11.3 mm), and all cases are classified as slipped.

How to Run#

uv run examples/bench/grasp/friction_threshold.py

Summary#

The two experiments validate MotrixSim’s contact mechanics advantages from complementary perspectives:

Dimension

Experiment 1 (Contact Force Analysis)

Experiment 2 (Critical Friction Test)

Force accuracy

Vertical friction precisely matches gravity \(mg\)

Hold/slip boundary at critical friction matches theory exactly

Force smoothness

Minimal step-to-step variation, no high-frequency oscillation

—

Friction consistency

—

Strictly obeys Coulomb’s friction law

These advantages have practical implications for:

  • Dexterous manipulation and precision assembly: Policy training relies on low-noise, physically consistent contact force feedback

  • Sim-to-real transfer: The closer simulated contact behavior is to physical laws, the higher the success rate when transferring policies to real robots

  • Grasp benchmarking: Research that needs to distinguish between “barely holding” and “stably held” requires high-quality contact force data
