📹 CameraViewport#
概述#
CameraViewport 允许您在渲染窗口中创建多个相机视口组件，用于同时显示不同相机的实时渲染画面。这对于多角度观察、传感器数据可视化等场景非常有用。

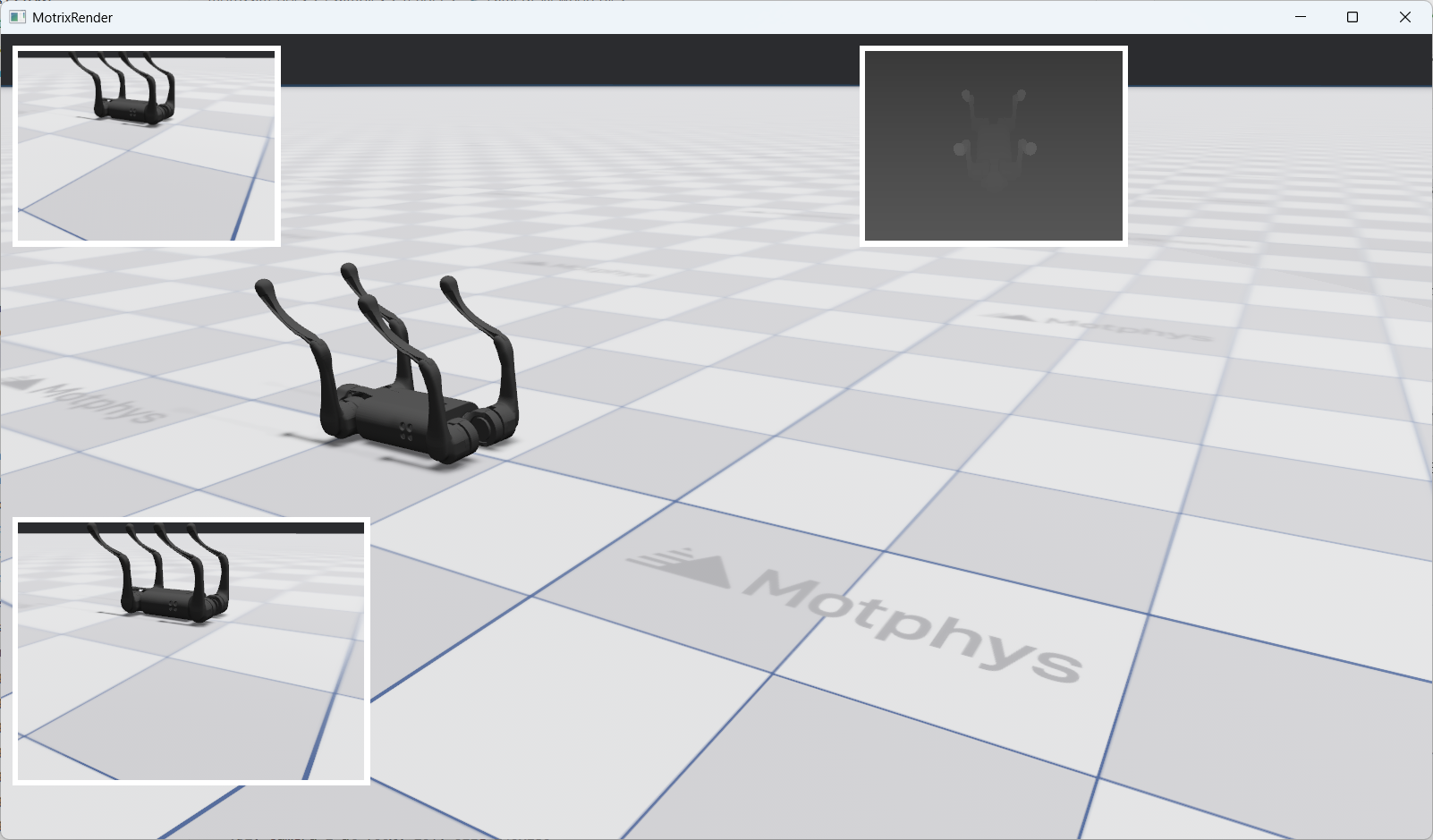

右上角展示了使用 Camera Viewport Widget 组件显示的 RGBD 传感器画面
主要特性#
多视口支持: 在同一窗口中创建多个独立的相机视口
灵活布局: 支持像素、百分比和自动三种布局格式
动态更新: 实时更新视口的相机、布局和属性
基础创建方法#
使用 render.widgets.create_camera_viewport() 方法创建相机视口 widget：
viewport = render.widgets.create_camera_viewport(
camera=cameras[0],
layout=Layout(left=10, top=10, width=240, height=180),
sim_world_index=0
)
参数说明：
camera: 要显示的相机对象（必需）
layout: 布局配置（可选，默认为 left=50, top=50, width=200, height=200）
sim_world_index: 模拟世界索引（可选，默认为 0）
返回值：返回一个 CameraViewport 对象。
创建多个 Viewport#
您可以在同一窗口中创建多个 viewport，每个显示不同相机的画面：
# Demonstrates fixed pixel positioning and sizing
vp1 = render.widgets.create_camera_viewport(
cameras[0], layout=Layout(left=10, top=10, width=240, height=180), sim_world_index=0
)
# Viewport 2: Top-right with percentage-based layout
# Demonstrates responsive positioning using percentages
vp2 = render.widgets.create_camera_viewport(
cameras[1], layout=Layout(left="60%", top=10, width=240, height=180), sim_world_index=0
)
# Viewport 3: Bottom-left with mixed layout (pixels + percentage)
# Demonstrates mixed layout values
vp3 = render.widgets.create_camera_viewport(
cameras[0], layout=Layout(left=10, top="60%", width=320, height=240), sim_world_index=0
)
这段代码创建了三个 viewport：
vp1: 左上角，使用像素布局，显示 cameras[0]
vp2: 右上角，使用百分比布局，显示 cameras[1]
vp3: 左下角，使用混合布局，显示 cameras[0]
Widget 动态更新#
创建 widget 后，可以通过 update() 方法动态更新其属性。
更新 Viewport 属性#
CameraViewport.update() 方法支持以下参数：
camera: 新的相机对象
layout: 新的布局配置
sim_world_index: 新的模拟世界索引
所有参数都是可选的，只提供需要更新的参数即可。
更新相机#
切换 viewport 显示的相机：
viewport.update(camera=cameras[1])
更新布局#
修改 viewport 的位置和大小：
viewport.update(layout=Layout(left=100, top=100, width=300, height=200))
组合更新#
可以同时更新多个属性：
viewport.update(
camera=cameras[2],
layout=Layout(left=200, top=200),
sim_world_index=0
)
交互式控制示例#
以下示例展示了如何通过按键交互来更新 widget：
切换相机#
if render.input.is_key_just_pressed("1"):
vp1.update(camera=cameras[0])
print("vp1: switched to camera 0")
if render.input.is_key_just_pressed("2"):
vp1.update(camera=cameras[1])
print("vp1: switched to camera 1")
if render.input.is_key_just_pressed("3"):
if len(cameras) >= 3:
vp1.update(camera=cameras[2])
print("vp1: switched to camera 2")
else:
print("vp1: camera 2 not available")
按 1/2/3 键可以切换 vp1 显示的相机。
移动 Viewport 位置#
move_step = 10
if render.input.is_key_just_pressed("w"):
vp1_top = max(0, vp1_top - move_step)
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
if render.input.is_key_just_pressed("s"):
vp1_top += move_step
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
if render.input.is_key_just_pressed("a"):
vp1_left = max(0, vp1_left - move_step)
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
if render.input.is_key_just_pressed("d"):
vp1_left += move_step
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
按 w/a/s/d 键可以移动 vp1 的位置。
调整 Viewport 大小#
resize_step = 20
if render.input.is_key_just_pressed("=") or render.input.is_key_just_pressed("+"):
vp1_width += resize_step
vp1_height += resize_step * 3 // 4
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: resized to {vp1_width}x{vp1_height}")
if render.input.is_key_just_pressed("-") or render.input.is_key_just_pressed("_"):
vp1_width = max(100, vp1_width - resize_step)
vp1_height = max(75, vp1_height - resize_step * 3 // 4)
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: resized to {vp1_width}x{vp1_height}")
按 +/- 键可以调整 vp1 的大小。
移除 Viewport#
如果不再需要某个 viewport，可以使用 remove() 方法将其完全从渲染窗口中移除：
viewport.remove()
警告
调用 remove() 方法后，该 viewport 将被永久移除。后续对该 viewport 对象调用 update() 方法将导致错误。如果需要重新显示，必须重新创建 viewport。
以下示例展示了如何通过按键交互来移除 viewport：
if render.input.is_key_just_pressed("k"):
vp3.remove()
print("vp3: removed from screen")
按 k 键可以移除 vp3。移除后，vp3 将从屏幕上完全消失，且无法通过 update 方法恢复。
完整示例#
以下是一个完整的交互式 CameraViewport widget 系统，包含创建、更新、交互控制等功能：
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
"""
Widgets Demo - Camera Viewport Example
This example demonstrates the widgets system with camera viewport widgets.
Features demonstrated:
- Creating multiple camera viewports with different layouts
- Pixel-based, percentage-based, and auto layouts
- Interactive viewport manipulation via keyboard controls
- Real-time widget updates
Controls:
- 1/2/3: Switch vp1 camera (sensor_camera_index)
- w/a/s/d: Move vp1 viewport (pixel-based movement)
- +/-: Resize vp1 viewport
- r: Reset all layouts
- h: Toggle vp1 visibility (move off/on screen)
- Delete: Remove vp3 from screen (requires restart to restore)
"""
from motrixsim import SceneData, load_model, run, step
from motrixsim.render import Layout, RenderApp
def main():
# Print instructions
print("=" * 60)
print("Widgets Demo - Camera Viewport Example")
print("=" * 60)
print("\nControls:")
print(" 1/2/3 - Switch vp1 to camera 0/1/2")
print(" w/a/s/d - Move vp1 viewport (up/left/down/right)")
print(" +/- - Resize vp1 viewport (larger/smaller)")
print(" r - Reset all layouts to default")
print(" h - Toggle vp1 visibility")
print(" k - Remove vp3 from screen (requires restart to restore)")
print("\nLayout Formats:")
print(" Pixels: Layout(left=50, top=50, width=200, height=150)")
print(" Percentage: Layout(left='10%', top='10%', width='30%', height='30%')")
print(" Auto: Layout(width='auto', height='auto')")
print("=" * 60)
print()
# Create render app for visualization
with RenderApp() as render:
# Load the scene model
path = "examples/assets/go1/scene.xml"
model = load_model(path)
# Configure cameras for rendering
# The go1 scene has multiple cameras that can be used as sensor cameras
cameras = model.cameras
if len(cameras) >= 2:
# Camera 0: RGB camera
cameras[0].set_render_target("image", 320, 240)
# Camera 1: Depth camera
cameras[1].set_render_target("image", 320, 240)
cameras[1].depth_only = True
cameras[1].set_near_far(0.1, 1.0)
# Launch the renderer
render.launch(model)
# Create simulation data
data = SceneData(model)
# ====================================================================
# Create Camera Viewport Widgets
# ====================================================================
# Viewport 1: Top-left with pixel-based layout
# Demonstrates fixed pixel positioning and sizing
vp1 = render.widgets.create_camera_viewport(
cameras[0], layout=Layout(left=10, top=10, width=240, height=180), sim_world_index=0
)
# Viewport 2: Top-right with percentage-based layout
# Demonstrates responsive positioning using percentages
vp2 = render.widgets.create_camera_viewport(
cameras[1], layout=Layout(left="60%", top=10, width=240, height=180), sim_world_index=0
)
# Viewport 3: Bottom-left with mixed layout (pixels + percentage)
# Demonstrates mixed layout values
vp3 = render.widgets.create_camera_viewport(
cameras[0], layout=Layout(left=10, top="60%", width=320, height=240), sim_world_index=0
)
# Store initial layouts for reset functionality
initial_layouts = {
"vp1": Layout(left=10, top=10, width=240, height=180),
"vp2": Layout(left="60%", top=10, width=240, height=180),
"vp3": Layout(left=10, top="60%", width=320, height=240),
}
# Track vp1 current position and size for movement controls
vp1_left, vp1_top = 10, 10
vp1_width, vp1_height = 240, 180
vp1_visible = True
print("Widgets created:")
print(f" vp1: camera 0 at ({vp1_left}, {vp1_top}), size {vp1_width}x{vp1_height}")
print(" vp2: camera 1 at (60%, 10), size 240x180")
print(" vp3: camera 0 at (10, 60%), size 320x240")
print()
# ====================================================================
# Define simulation and rendering callbacks
# ====================================================================
def phys_step():
"""Physics step callback - runs 4 substeps for stability"""
step(model, data)
def render_step():
"""Render step callback - handles input and synchronization"""
nonlocal vp1_left, vp1_top, vp1_width, vp1_height, vp1_visible
# ====================================================================
# Interactive Controls
# ====================================================================
# Switch vp1 camera
if render.input.is_key_just_pressed("1"):
vp1.update(camera=cameras[0])
print("vp1: switched to camera 0")
if render.input.is_key_just_pressed("2"):
vp1.update(camera=cameras[1])
print("vp1: switched to camera 1")
if render.input.is_key_just_pressed("3"):
if len(cameras) >= 3:
vp1.update(camera=cameras[2])
print("vp1: switched to camera 2")
else:
print("vp1: camera 2 not available")
# Move vp1 viewport (10 pixels per keypress)
move_step = 10
if render.input.is_key_just_pressed("w"):
vp1_top = max(0, vp1_top - move_step)
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
if render.input.is_key_just_pressed("s"):
vp1_top += move_step
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
if render.input.is_key_just_pressed("a"):
vp1_left = max(0, vp1_left - move_step)
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
if render.input.is_key_just_pressed("d"):
vp1_left += move_step
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: moved to ({vp1_left}, {vp1_top})")
# Resize vp1 viewport (20 pixels per keypress)
resize_step = 20
if render.input.is_key_just_pressed("=") or render.input.is_key_just_pressed("+"):
vp1_width += resize_step
vp1_height += resize_step * 3 // 4
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: resized to {vp1_width}x{vp1_height}")
if render.input.is_key_just_pressed("-") or render.input.is_key_just_pressed("_"):
vp1_width = max(100, vp1_width - resize_step)
vp1_height = max(75, vp1_height - resize_step * 3 // 4)
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: resized to {vp1_width}x{vp1_height}")
# Reset all layouts
if render.input.is_key_just_pressed("r"):
vp1.update(layout=initial_layouts["vp1"])
vp2.update(layout=initial_layouts["vp2"])
vp3.update(layout=initial_layouts["vp3"])
vp1_left, vp1_top = 10, 10
vp1_width, vp1_height = 240, 180
vp1_visible = True
print("All layouts reset to default")
# Toggle vp1 visibility
if render.input.is_key_just_pressed("h"):
vp1_visible = not vp1_visible
if vp1_visible:
vp1.update(layout=Layout(left=vp1_left, top=vp1_top, width=vp1_width, height=vp1_height))
print(f"vp1: visible at ({vp1_left}, {vp1_top})")
else:
# Move off-screen to hide
vp1.update(layout=Layout(left=-500, top=-500, width=vp1_width, height=vp1_height))
print("vp1: hidden")
# Remove vp3 from screen
if render.input.is_key_just_pressed("k"):
vp3.remove()
print("vp3: removed from screen")
# Sync render with simulation
render.sync(data)
# ====================================================================
# Run the main simulation loop
# ====================================================================
run.render_loop(model.options.timestep, 60, phys_step, render_step)
